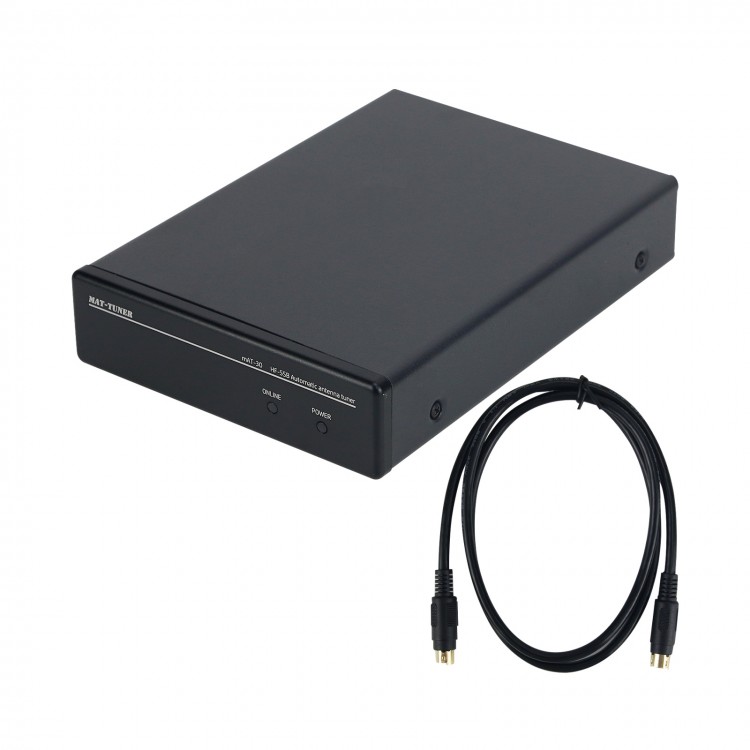

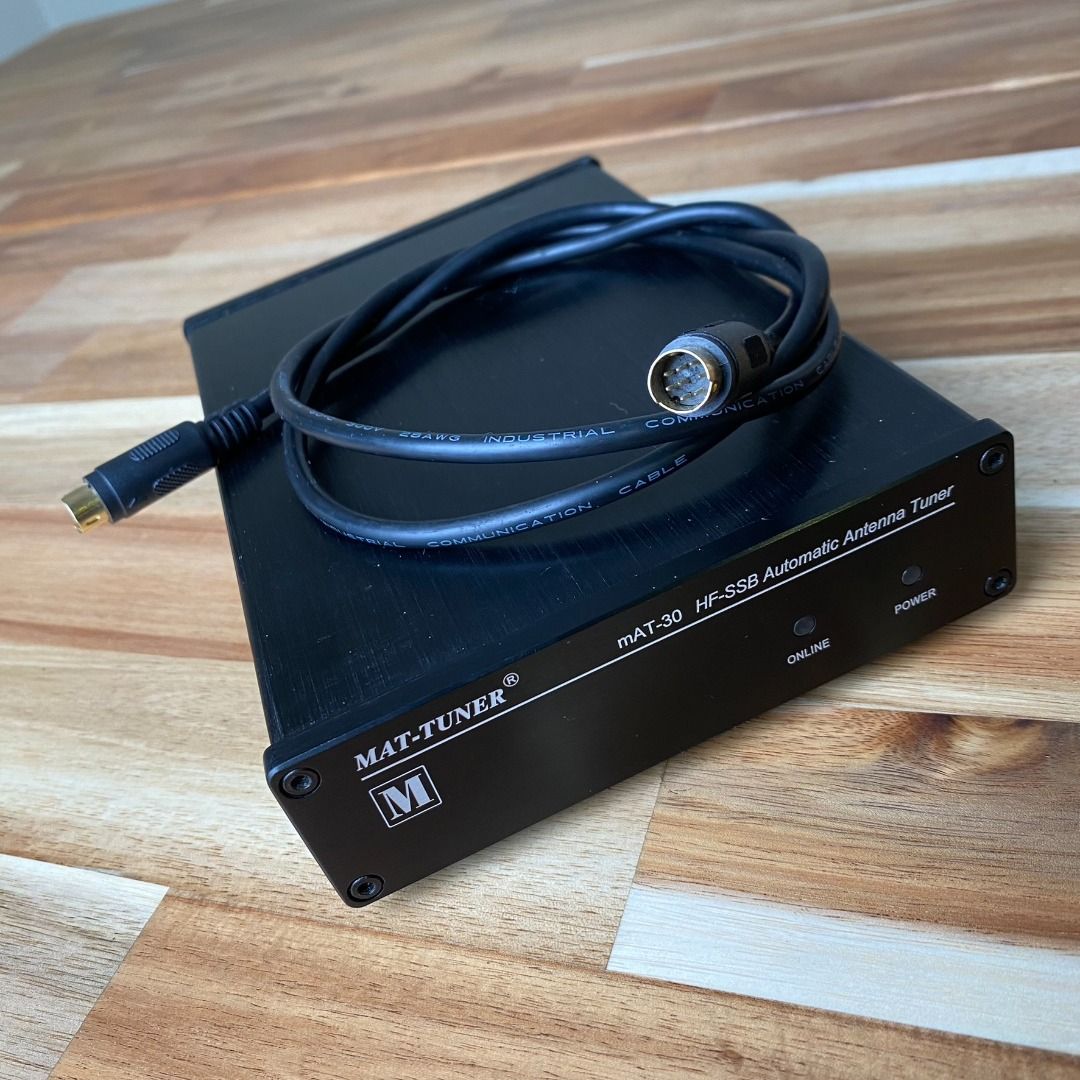

New Product Spotlight: MAT-TUNER Antenna Tuner For Yaesu Transceivers

It works with some YAESU transceiver that supports an FC-30 , FC-40 or FC-50 YAESU tuner; a partial list of compatible units includes: FT-100,FT-857D,FT-897D,FT-450D,FT-891,FT-950,FT-991,FT-991A,FTDX-3000. The operating is the same as the method of the YAESU tuner, which is simple and convenient. The mAT-30 connects to the transceiver via its CAT/LINEAR jack to control the tuning cycle, the transceivers Tune button controls the tuner. The CAT/LINEAR jack also powers the tuner, so it requires no external power supply. The mAT-30 can work within the range of 1.6MHz to 54MHz, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. When tuning on or near a previously tuned frequency, the mAT-30 uses Memory Tune to recall the previous tuning parameters in a fraction of a second. In this manner, the mAT-30 learns as it is used, adapting to the bands and frequencies as it goes.SPECIFICATIONS - 0.1 to 120 watts SSB and CW peak power, 30 watts on PSK and digital modes, and 100 watts on 6 meters. - 1.8 to 54.0 MHz coverage. 16,000 memories for instantaneous frequency - Tunes 5 to 1500 ohm loads. - Tuning time: 0.1 to 5 seconds full tune, 0.1 seconds memory tune. - For dipoles, verticals, Vees, beams, long wire or any coax-fed antenna. - Controlled from YAESU TUNE button on transceiver. Powered from YAESU transceiver. - Partial transceiver list: FT-100,FT-857D,FT-897D,FT-450D,FT-891, FT-950,FT-991,FT-991A, FTDX -3000. - Dimensions: 20cm x 13cm x 4cm (L x W x H). - Weight: 0.8Kg. The mAT-30 is an automatic tuner intended for use with modern YAESU transceivers.
